Customizing the generic text definition template

1.

Click on Add Data File button.

2.

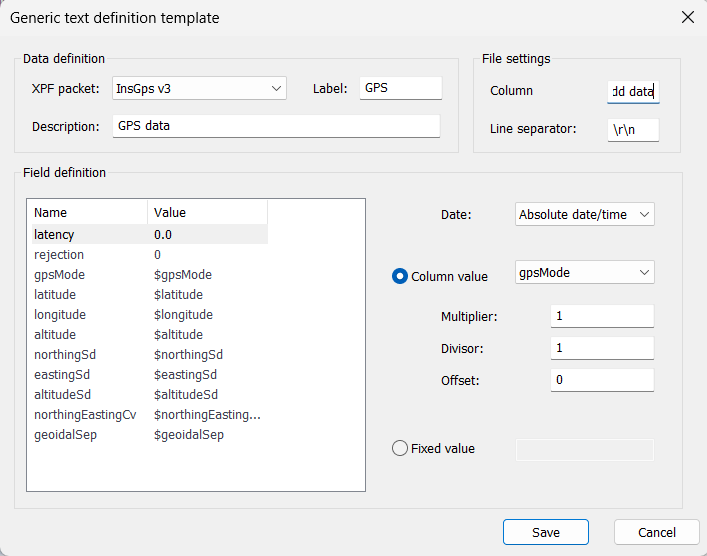

When selecting the Generic text file type, the Import data window is displayed. Click on Customize button to customize the data and create a template. Then the following window is displayed:

3.

In the Data definition frame:

>

Select the XPF packet version. This will displayed the fields in the Field definition frame.

>

If needed, modify the label of the XPF packet version

>

If needed, modify the description field

4.

In the File settings, if needed, modify the column and the line separator

5.

In the Field definition and for each field:

>

Select the date: Absolute date/time or Ellapsed time

>

Select and modify Column value or Fixed value

6.

Save the template by clicking on the Save button. The template is saved in the Delph INS Subsea\Templates directory.
